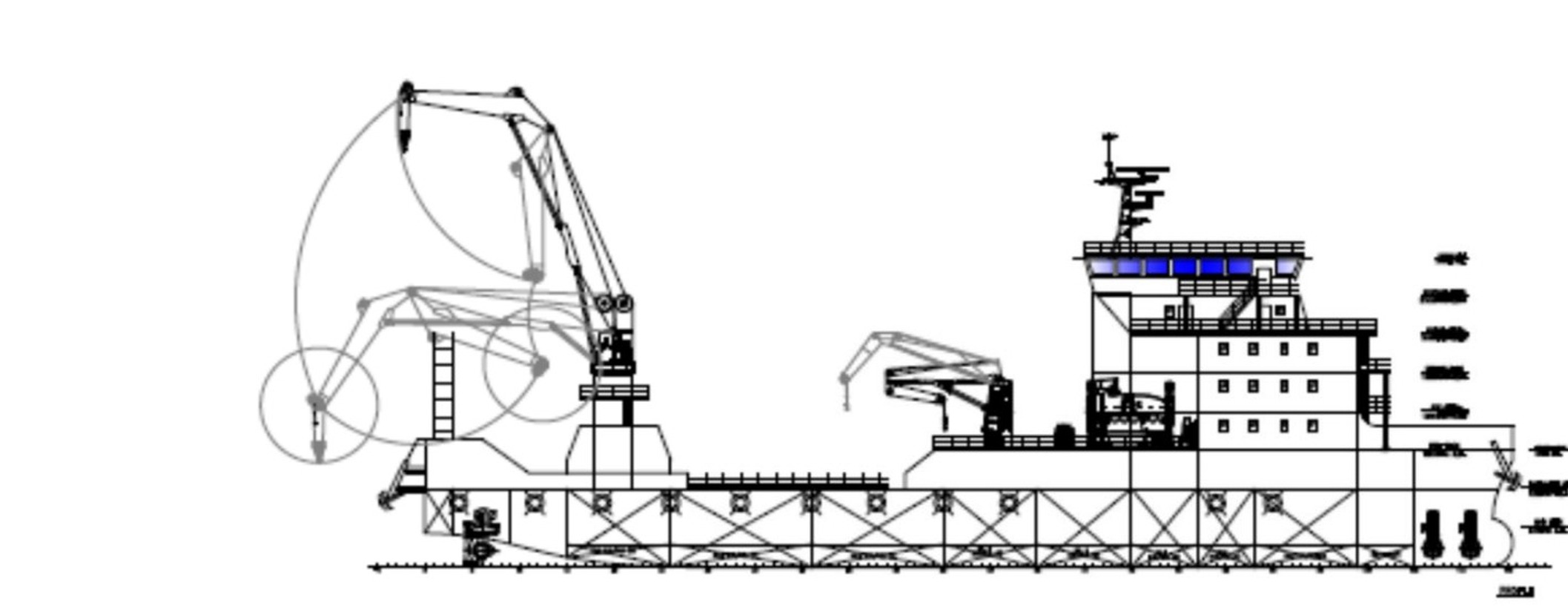

Multi-Purpose Offshore Support Vessel
SOLITAIRE SERIES
A 75-metre multi-purpose offshore support vessel with DP 2 station keeping, a 50-tonne active heave compensated deep-water crane and accommodation for 103 persons.
Principal Dimensions
- Length overall
- 75.05 m
- Length BP
- 73.70 m
- Breadth, moulded
- 19.50 m
- Depth, moulded
- 5.50 m
- Min. draft, moulded
- 3.83 m
- Max. draft, moulded
- 4.60 m
- Deadweight @ max draft
- Approx. 1,823 t
- Gross tonnage
- Approx. 3,052 GT
- Max. speed @ 100% MCR
- Approx. 11.0 kn
- Service speed @ 80% MCR
- Approx. 10.0 kn
- Complement
- 103 persons
Deck & Classification
- Cargo deck area
- Approx. 700 m²
- Deck load
- 5 t/m²
- Mezzanine deck area
- Approx. 200 m²
- Class society
- Bureau Veritas (BV)
- Notation
- I ✠Hull ✠Mach; Special service / offshore support; fire fighting 1, waterspray; unrestricted navigation
- Automation
- ✠AUT-UMS; ✠ALM
- DP class
- ✠DYNAPOS-AM/AT-R (DP 2, Kongsberg)
- Additional
- COMF-NOISE 3; CYBER RESILIENT
Machinery & Propulsion
- Propulsion
- 2 × thruster, FPP with nozzle
- Propulsion capacity
- Approx. 2 × 1,300 kW, freq. motor driven
- Bow thrusters
- 2 × CPP, approx. 700 kW
- Main gensets
- Cummins — 4 × 910 ekW + 2 × 250 ekW, 450V / 60Hz
- Emergency genset
- 1 × Cummins, approx. 80 ekW, 450V / 60Hz
- Fire pumps
- 2 × approx. 1,800 m³/h @ 130 m
- Fire monitors
- 2 × approx. 1,200 m³/h
- Ballast water treatment
- 1 × 100 m³/h
- RO fresh water generator
- 1 × 30 t/day
Tank Capacities
- Fuel oil
- Approx. 600 m³
- Fresh water
- Approx. 780 m³
- Drill water / ballast
- Approx. 1,270 m³
- Mud
- Approx. 200 m³
- Brine
- Approx. 400 m³
- Deck power supply
- 2 × 300 kW, 440V
- Deck service air
- 1,200 m³/h @ 8 bar
Crane & Deck Equipment
- Main crane
- AHC deep water knuckle boom crane
- Harbour capacity
- 50 t @ 7.5 m / 15 t @ 21.5 m
- Offshore capacity
- 37.5 t @ 7.5 m / 11 t @ 21.5 m
- Winch
- 40 t / 17 t, 1,500 m, AHC, man riding
- Deck cranes
- 2 × 10 t @ 10 m
- Windlass / mooring winch
- 2 × approx. 6.5 t @ 9 m/min
- Capstans
- 2 × 5 t @ 15 m/min
- Tugger winch
- 1 × SWL 10 t
- 8-point mooring system
- Fitted
- Rescue boat
- 1 × G.R.P., 6 persons, with A-frame
- Life rafts
- 6 × inflatable, 20 persons
Navigation & Communication
- Radars
- 2 sets
- GPS
- 2 sets
- ECDIS
- 1 set
- AIS
- 1 set
- Autopilot
- 1 set
- Gyro / magnetic compass
- 1 set each
- Echo sounder / speed log
- 1 set each
- VDR
- 1 set
- GMDSS
- A1 + A2 + A3
- MF/HF radio
- 1 set
- Inmarsat-C with ECG receiver
- 2 sets
- Navtex / EPIRB
- 1 set each
- Radar transponders
- 2 sets
- BNWAS / CCTV
- 1 set each
