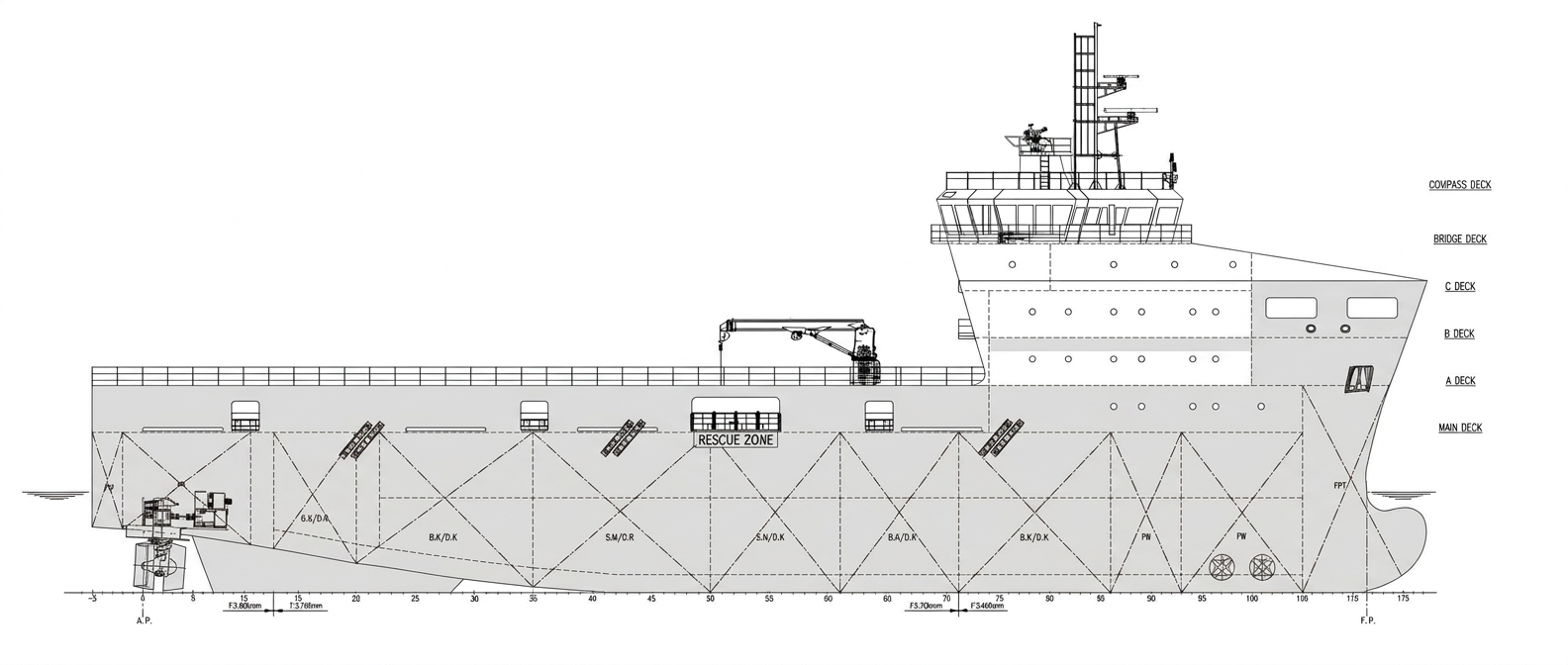

Multi-Purpose Platform Supply Vessel
SPINELLE SERIES
A 79-metre newbuild multi-purpose offshore support vessel with LNG dual-fuel propulsion, DPS-2 station keeping and an 810 m² cargo deck.
Principal Dimensions
- Length overall
- Approx. 79.00 m
- Length BP
- 72.60 m
- Breadth, moulded
- 18.20 m
- Depth, moulded
- 9.50 m
- Design draft
- 6.00 m
- Max draft (scantling)
- 6.95 m
- Gross tonnage
- Approx. 3,868 GT
- Deadweight @ 6.00 m
- Approx. 3,100 MT
- Deadweight @ 6.95 m
- Approx. 4,020 MT
- Trial / service speed
- Approx. 13.5 / 12.0 kn
- Complement
- 54 persons
Deck & Classification
- Clear deck (L × B)
- 53.20 m × 15.40 m
- Cargo deck area
- Approx. 810 m²
- Clear deck space
- Approx. 780 m²
- Deck strength
- 5 t/m²
- Deck load capacity
- 1,250 t
- Class society
- American Bureau of Shipping
- Notation
- AA, SUPPLY-HNLS, FFV1
- DP class
- ABS DPS-2 (Kongsberg)
- Status
- Newbuild — for construction
Machinery & Propulsion
- Main generators
- Wartsila 20DF — 4 × 1,480 kW
- Fuel type
- LNG / diesel dual fuel
- Generator voltage
- 690V / 60Hz
- Azimuth thrusters
- 2 × 2,000 kW (1,900 kW output)
- Bow thrusters
- 2 × 750 kW tunnel
- Emergency generator
- 1 × 250 kW / 440V
- FiFi class
- FiFi 1 (2 × 1,600 m³/h)
- Deck crane
- 1 × 3 t @ 12 m knuckle boom
Tank Capacities
- Ballast / drill water
- 1,500 m³
- Fuel oil
- 650 m³
- LNG
- 300 m³
- Fresh water
- 800 m³
- Mud / base oil
- 830 / 960 m³
- Brine
- 1,070 m³
- Dry bulk
- 250 m³
Navigation & Deck Equipment
- GMDSS
- Fitted — Area A3
- Radar
- X-band & S-band
- ECDIS
- Furuno
- AIS
- Class A — Furuno
- DGPS
- 2 × Seatex DPS 232 / 132
- Reference systems
- CyScan, Radius 1000D
- Tugger winches
- 2 × 8 t sets
- Capstans
- 2 × 10 t @ 15 m/min
Accommodation
- Total bunks
- 54 persons
- Single cabins
- 10
- Double cabins
- 22
- Mess / galley
- Fitted
- Hospital
- Fitted
- Gymnasium
- Fitted
- Ship's office
- 2 × fitted
- Air conditioning
- Central AC
